12 / 24 / 30 Watt Ac Dc Adapter 12v , Wall Mount Power Supply For Lcd Monitor

Product Categories
HK Anenerge Co., Limited
Contact Now

12 / 24 / 30 Watt Ac Dc Adapter 12v , Wall Mount Power Supply For Lcd Monitor

  • 1
  • 2
  • 3

Brand Name : OEM/Anenerge

Model Number : AE-1201000

Certification : CE Rohs FCC SAA GS UL

Place of Origin : shenzhen

MOQ : 1pcs

Price : 3usd/pcs

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 100000pcs/month

Delivery Time : 3-5days

Packaging Details : Neutral packaging white box

Material : PC ABS plastic

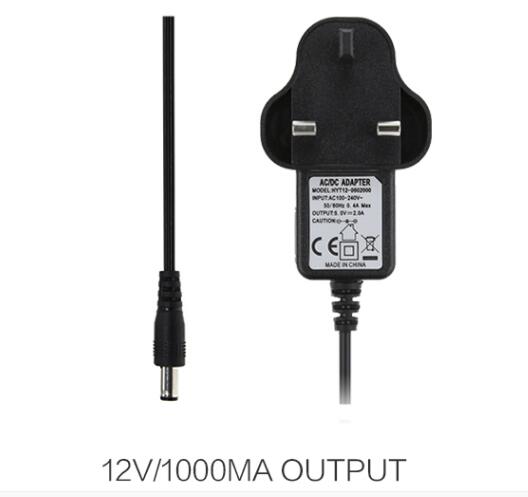

Output : 12volt 1amp 12watt

Type : ac dc adapter

input : 50hz 60hz 100v 240v

Packaging : neutral white box

warranty : 2 years

Contact Now

Ac dc adapter 12v, wall mount power supply 12watt 24watt 30watt for lcd monitor,router,led strips



Place of Origin: Guangdong, China (Mainland)

Brand Name: Anenerge

Model Number: AE-1202000

Output Type: DC

Connection:Plug In

size: 74*38*29mm

Output Voltage: 5-48V

OutputCurrent(Max): 0.1-6.0A

Input Voltage: AC90-264V

Input Frequency: 50-60Hz

Input current: 0.5A Max

Operating Temperature: 0-40 degree

Storage Temperature: 20-85 degree

EMC(EMI/EMS): FCC CE C-Tick



Features

1.Over-Voltage protection
2.Over-Current protection
3.Short-Circuit protection
4.100% Hi-pot&ATE(Chroma) Tested
5.100% Burn-in under High
6.Ambient Temperature(40℃)
7.Low Ripple/Noise
8.MTBF Above 40000 HRS AT 25℃
9. LVD authentication
10.Limited power sources(LPS)
11. CEC IV and V Efficiency
12.Cispr22 CLASS B FCC Part 15 CLASS B



Output Voltage 5-48V
Output Current 0.1-6.0A
Input AC 100V-240V,50/60Hz 0.6A
Range Voltage: AC 90V-264V,47/63Hz
Output Power: 24W
Input Current 2.0A Max
Inrush current 100A Max
Line Regulation 1% Max
Load Regulation 5%Max
Ripple&Noise 1%Max
Efficiency 75-87%
Operating Temperature 0-40 degree
Storage Temperature 20-85 degree
Over-Voltage Protection Auto Recovery
Short-circuit protection Auto Recovery
Safety Standard CB UL GS CCC SAA
EMC(EMI/EMS) CE FCC C-TICK
Size Case Size:74*38*29mm Cable size:1.2m
Warranty 2years
12 / 24 / 30 Watt Ac Dc Adapter 12v , Wall Mount Power Supply For Lcd Monitor



12 / 24 / 30 Watt Ac Dc Adapter 12v , Wall Mount Power Supply For Lcd Monitor12 / 24 / 30 Watt Ac Dc Adapter 12v , Wall Mount Power Supply For Lcd Monitor
